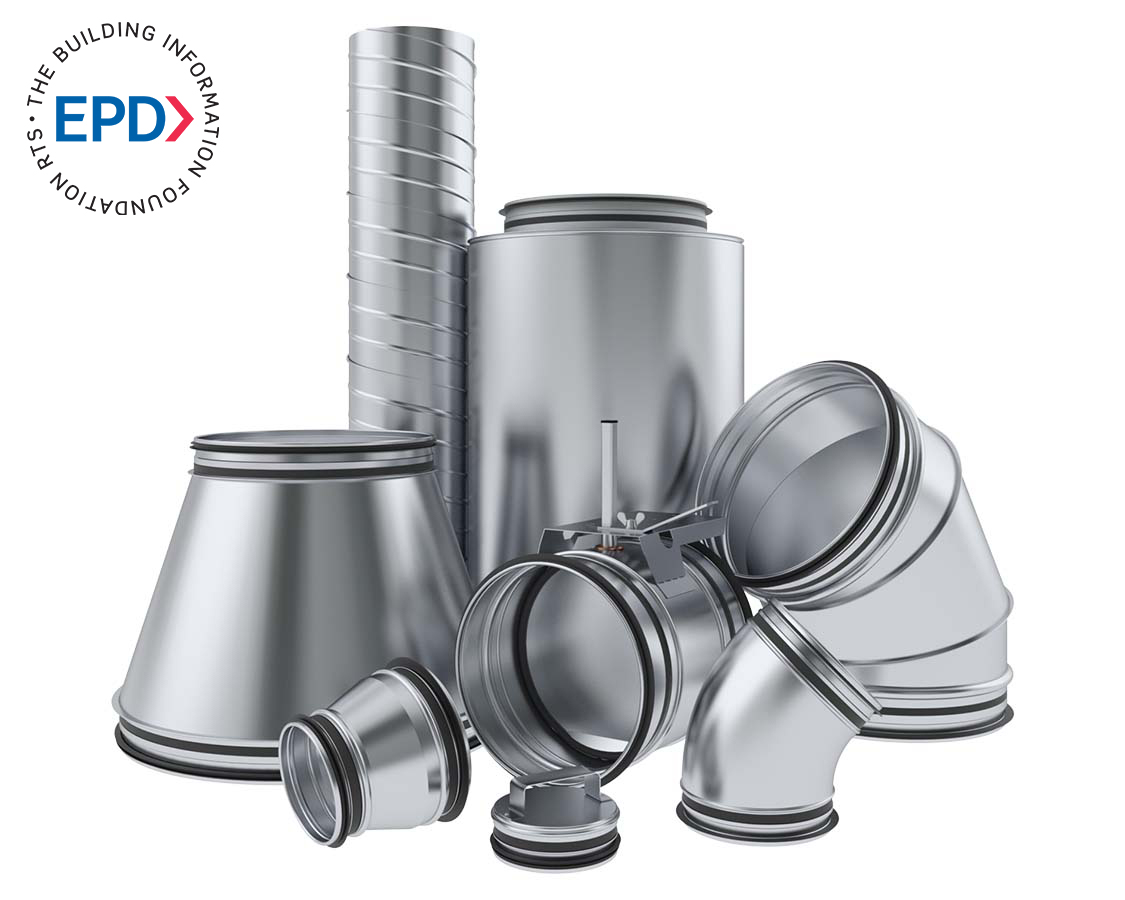

NORDsmoke-round

Smoke control duct sections

NORDsmoke is a certified ventilation ducts product group for single compartment smoke extraction. It is used in a system to control the movement and/or containment of smoke and heat.



NORDsmoke -smoke control duct section achieves CE standard requirements.



NORDsmoke -ducts are in accordance with EN 13501 standard. Duct system has been tested for 600°C/2 hours (according to EN 1366-9). NORDsmoke -smoke extraction ducts are classified according to EN 13501-4 as follows:



  • Maximum negative pressure is -1500 Pa
  • Maximum positive pressure is +500 Pa
  • Resistance temperature is 600 °C for 120 minutes



Classification report of the fire resistance of a smoke extraction duct according to EN 13501-4:E600 120 (ve – ho) S 1500



Downloadable files

NORDsmoke -circular smoke extraction ducts pdf Open
NORDsmoke -circular smoke extraction ducts -installation instruction pdf Open
NORDsmoke -circular - Certificate of Consistancy Performance pdf Open
NORDsmoke - Declaration of Performance pdf Open

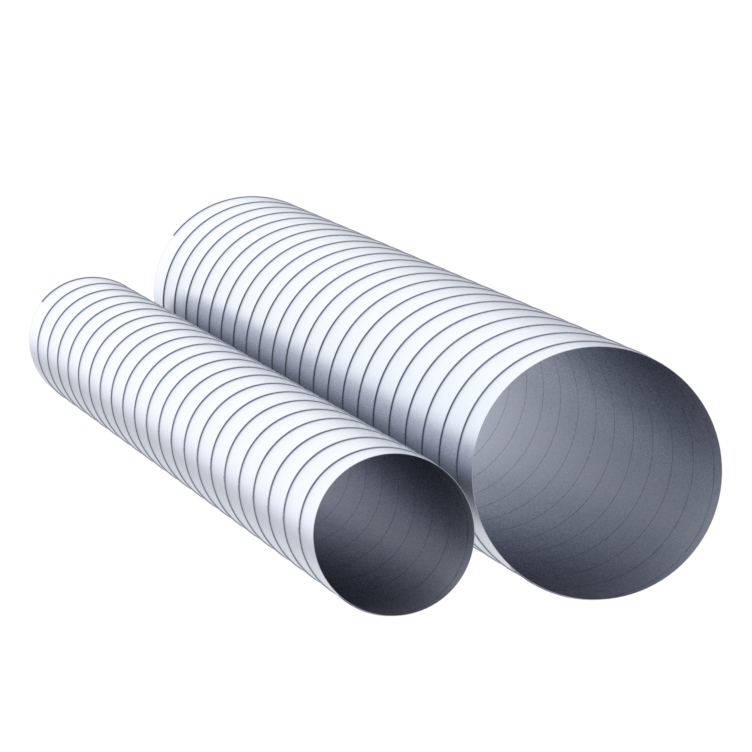

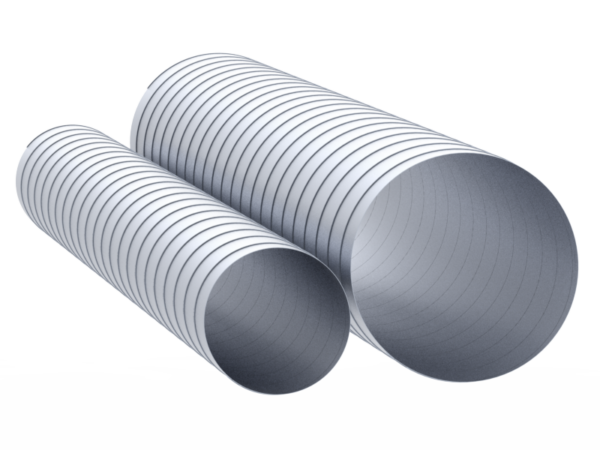

NTO-T Spiral duct

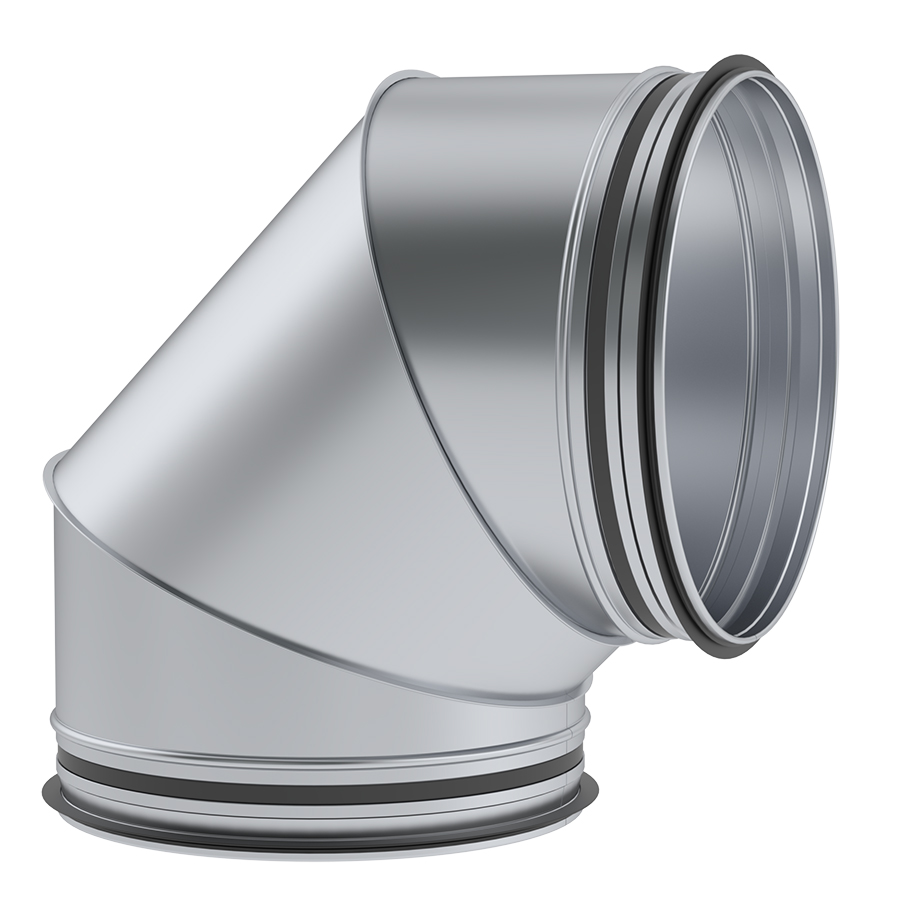

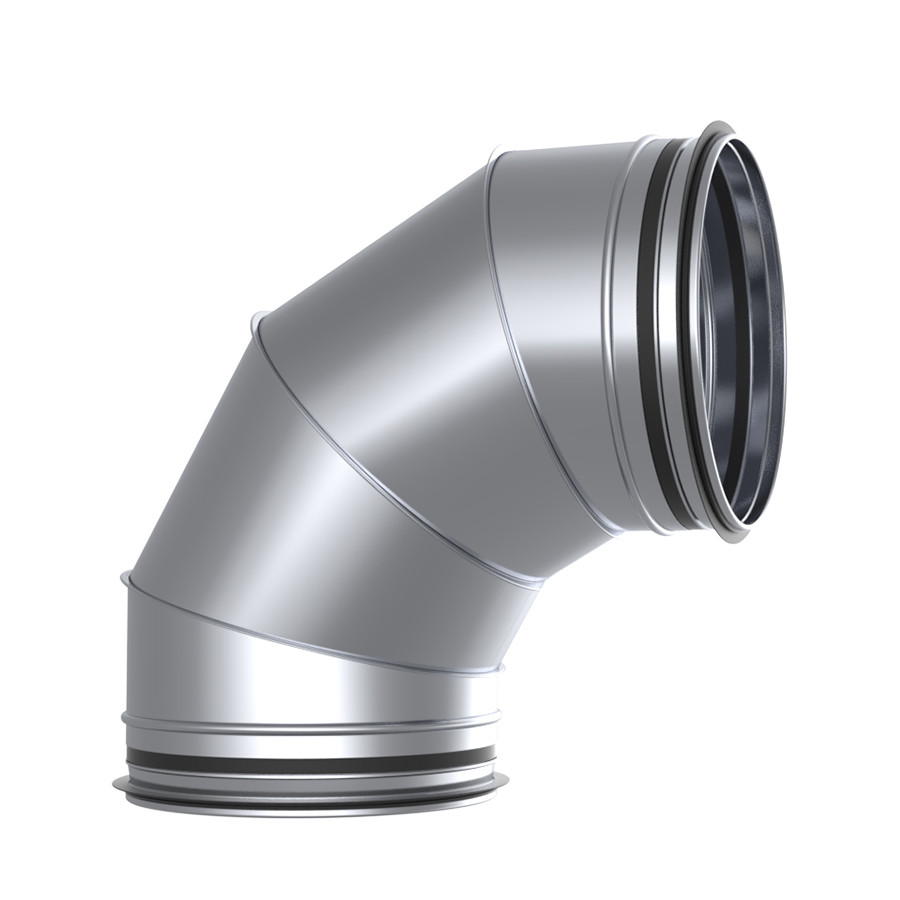

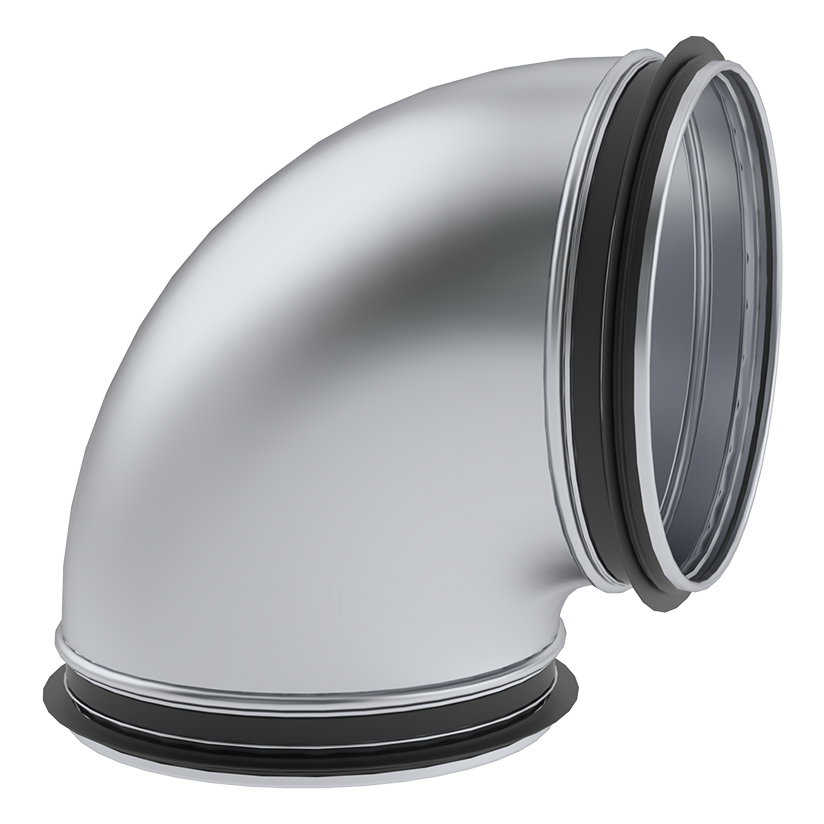

NV-T Bend

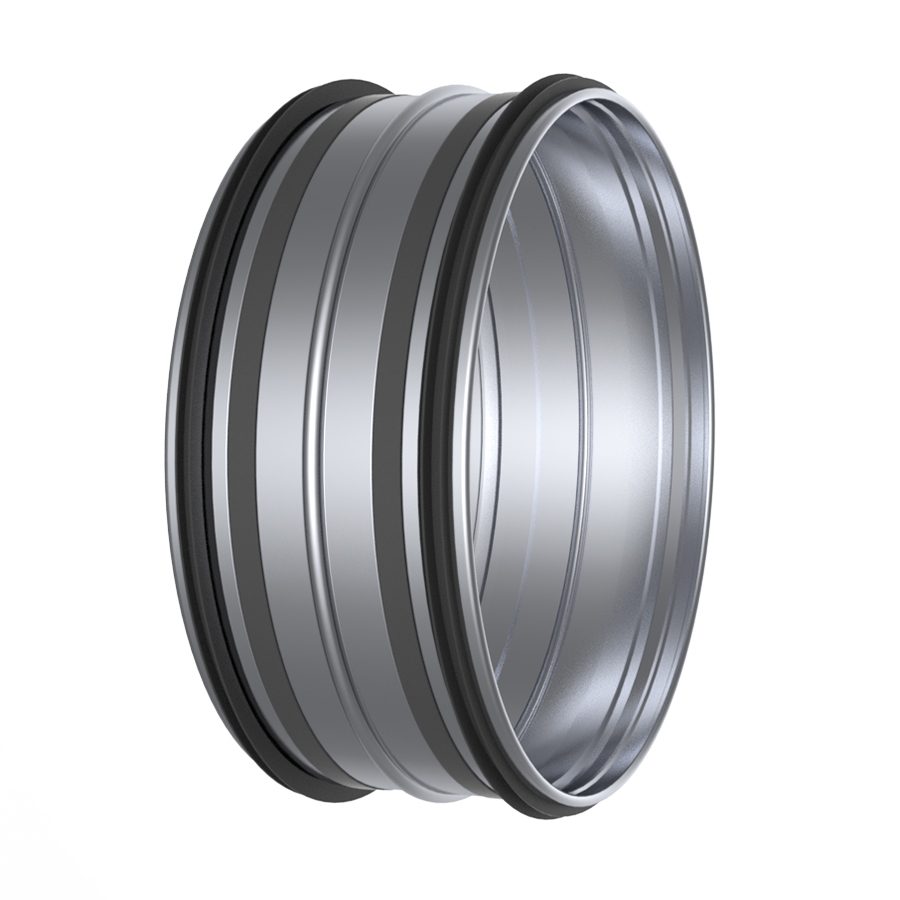

NI-T Coupling

NIL-T Slide-in coupling

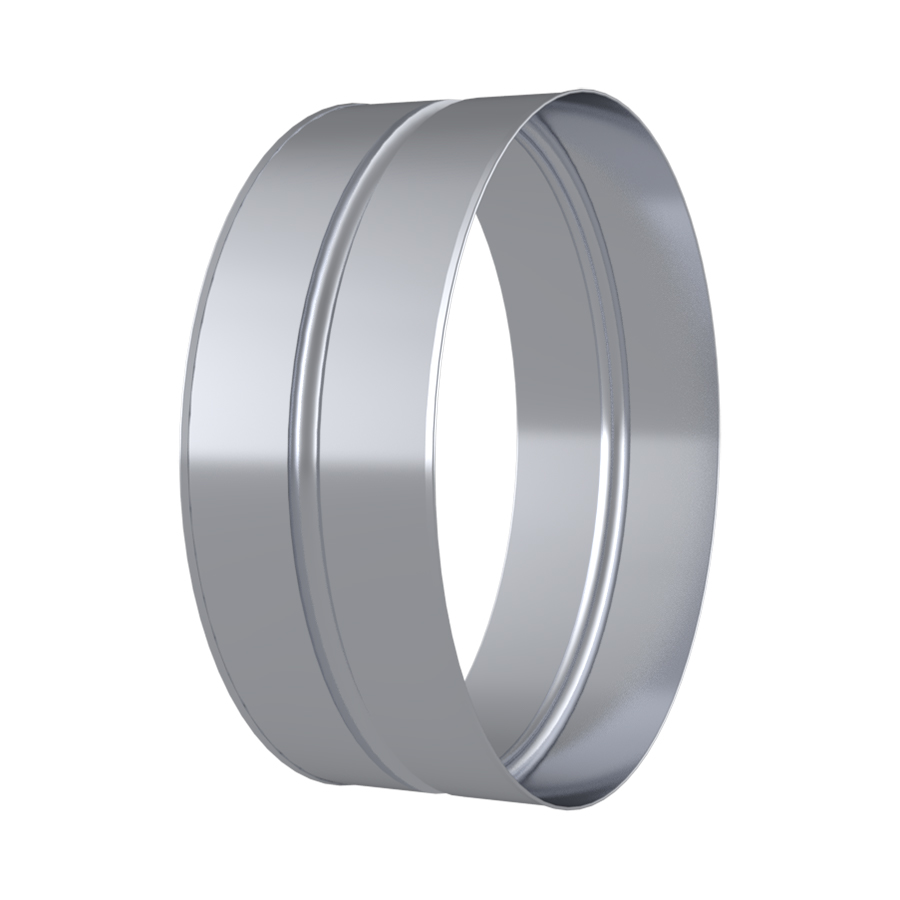

NM-T Female coupling

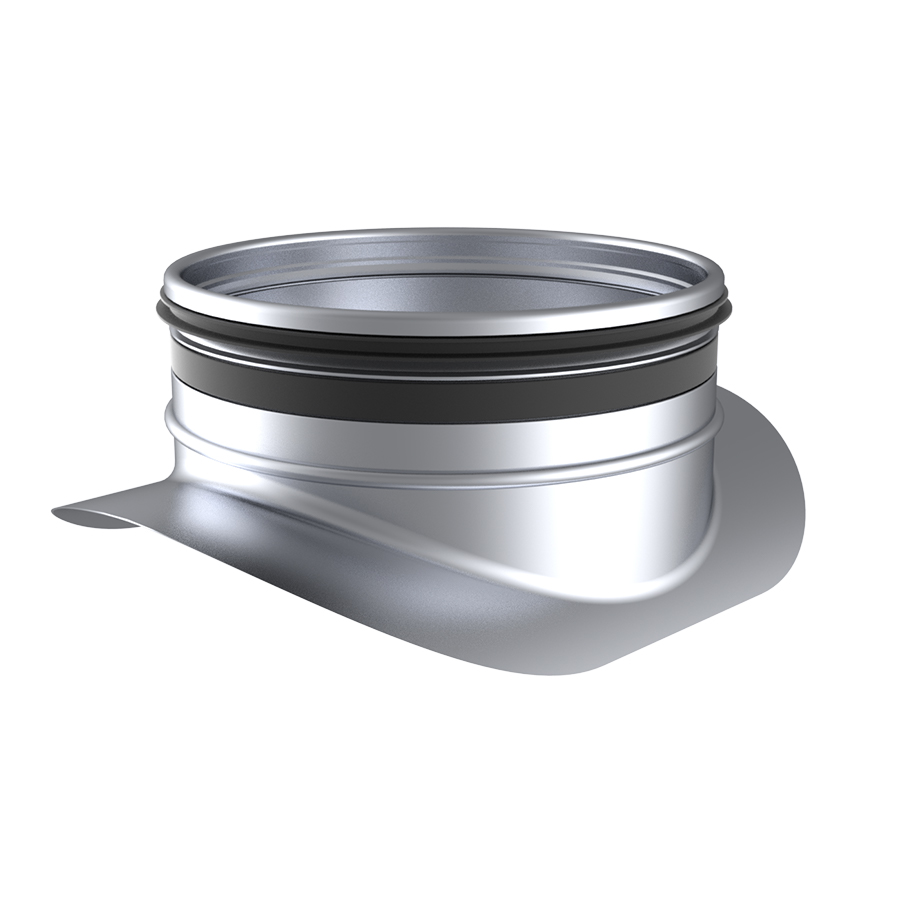

NSK-T Saddle

NSKM-T Saddle

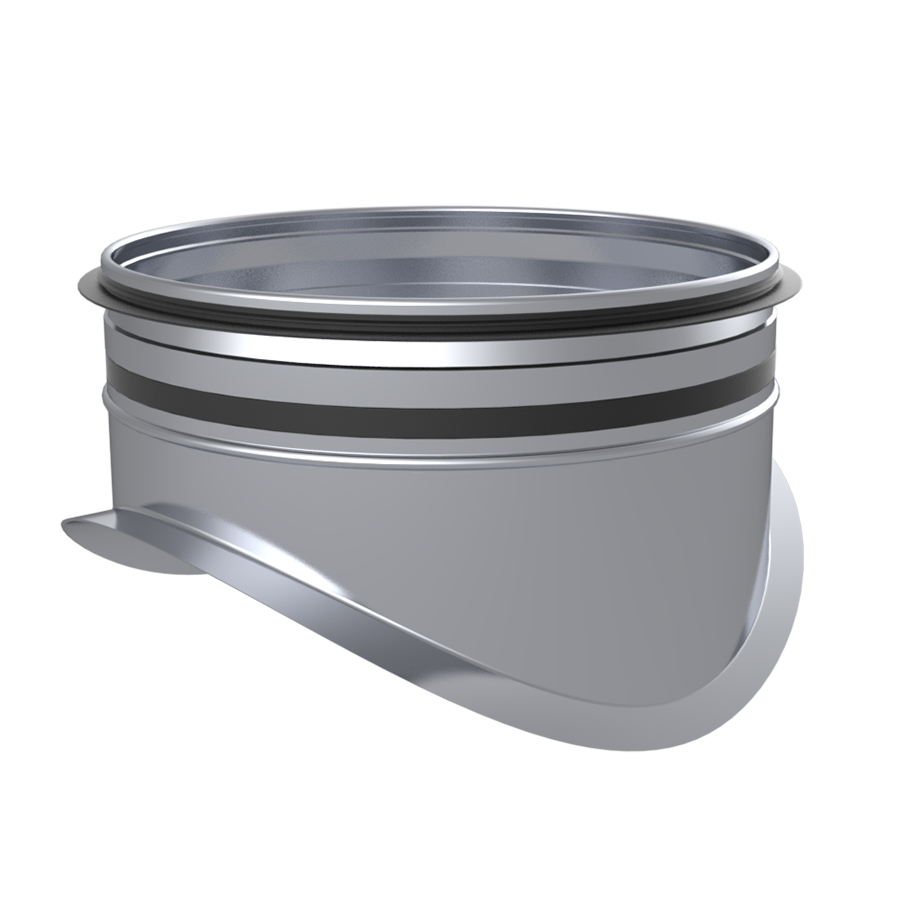

NPSK-T Saddle

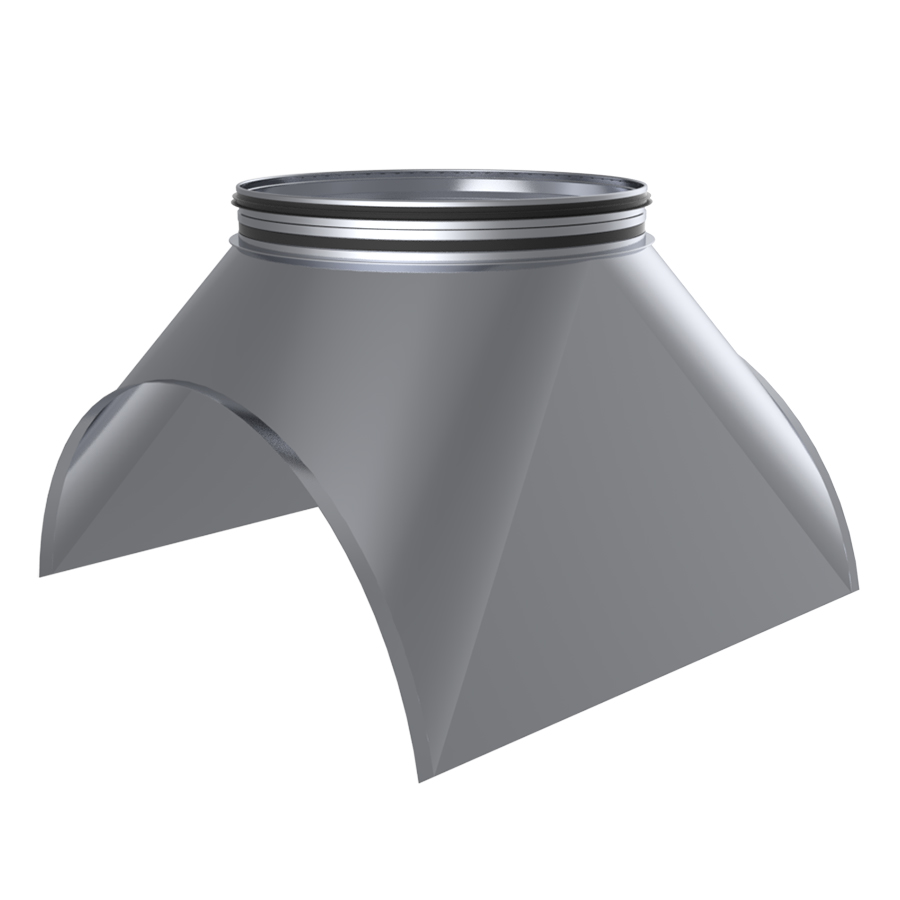

NPSV-T Saddle

NFCV-T Reducer, concentric

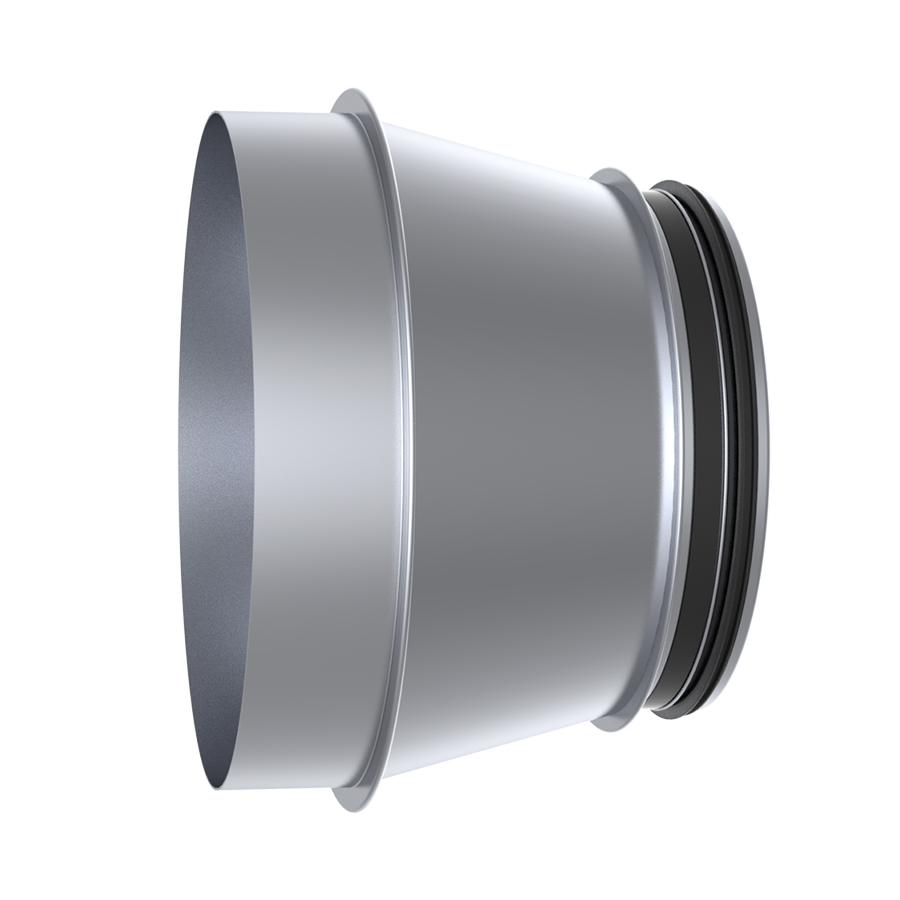

NFCVM-T Reducer, concentric

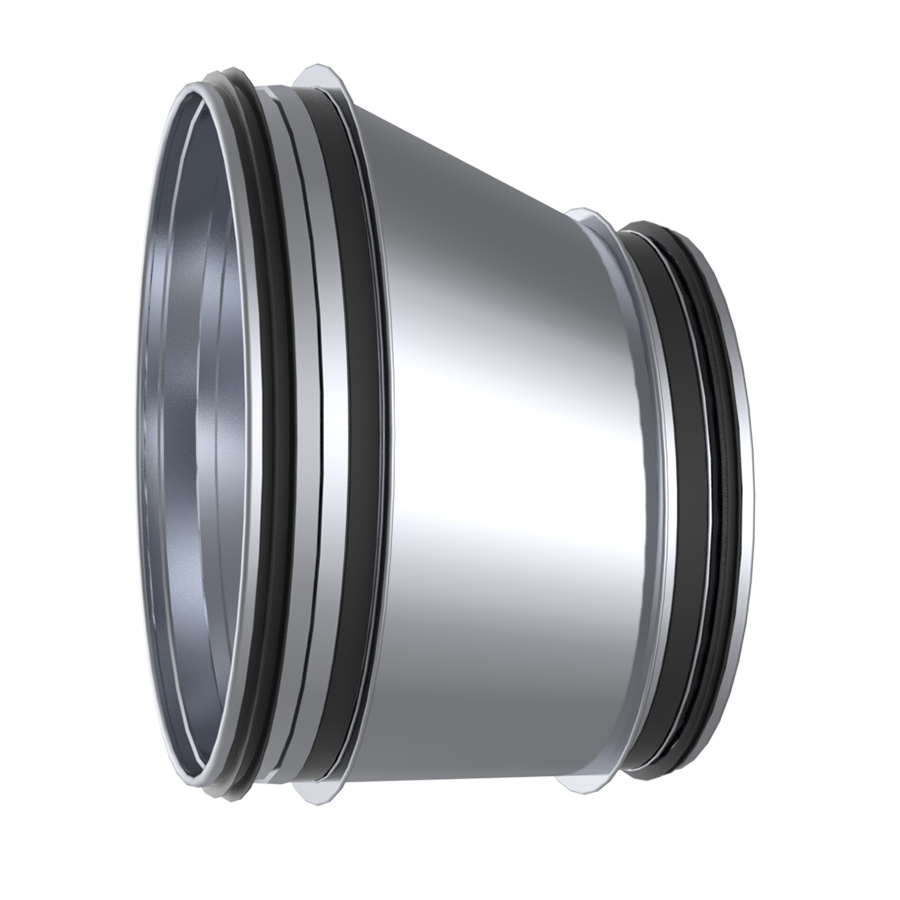

NFB-T Reducer, eccentric

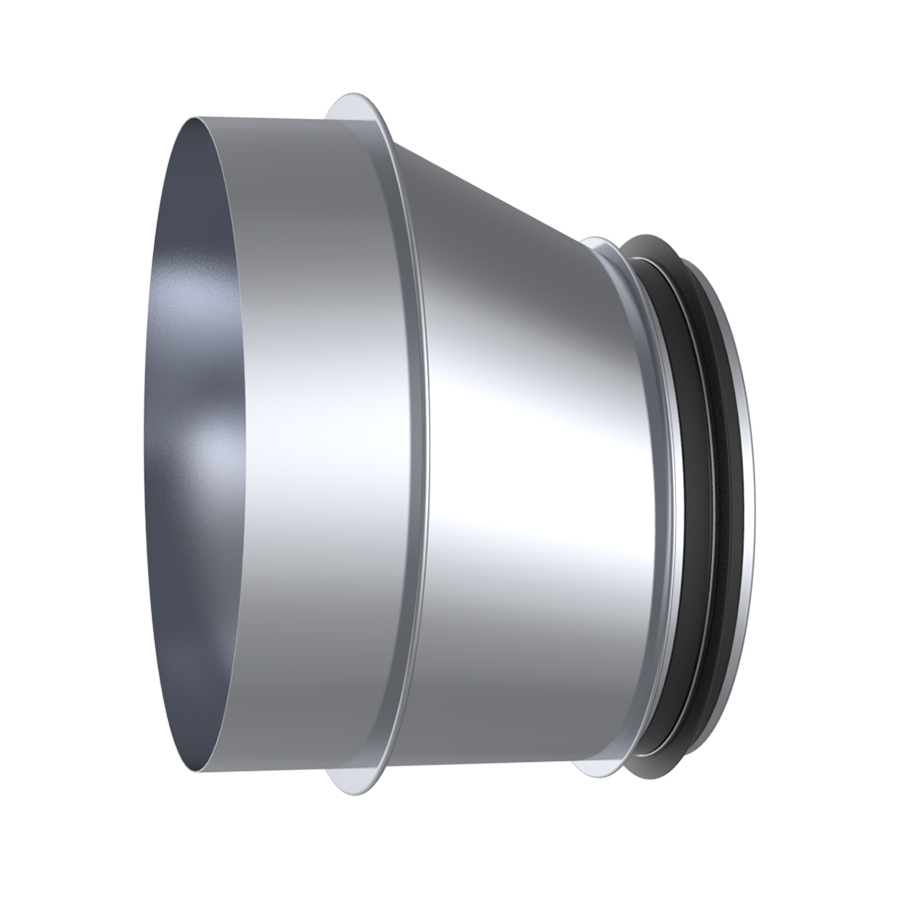

NFBM-T Reducer, ecccentric

NTK-T T-piece

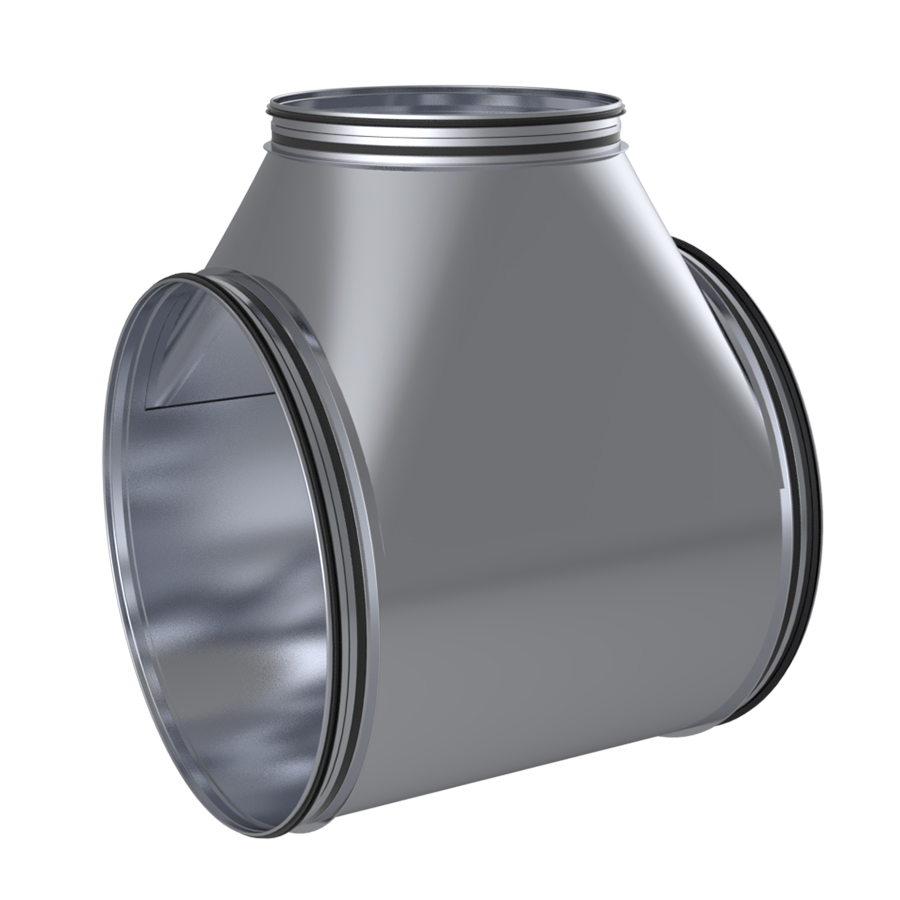

NTKV-T T-piece

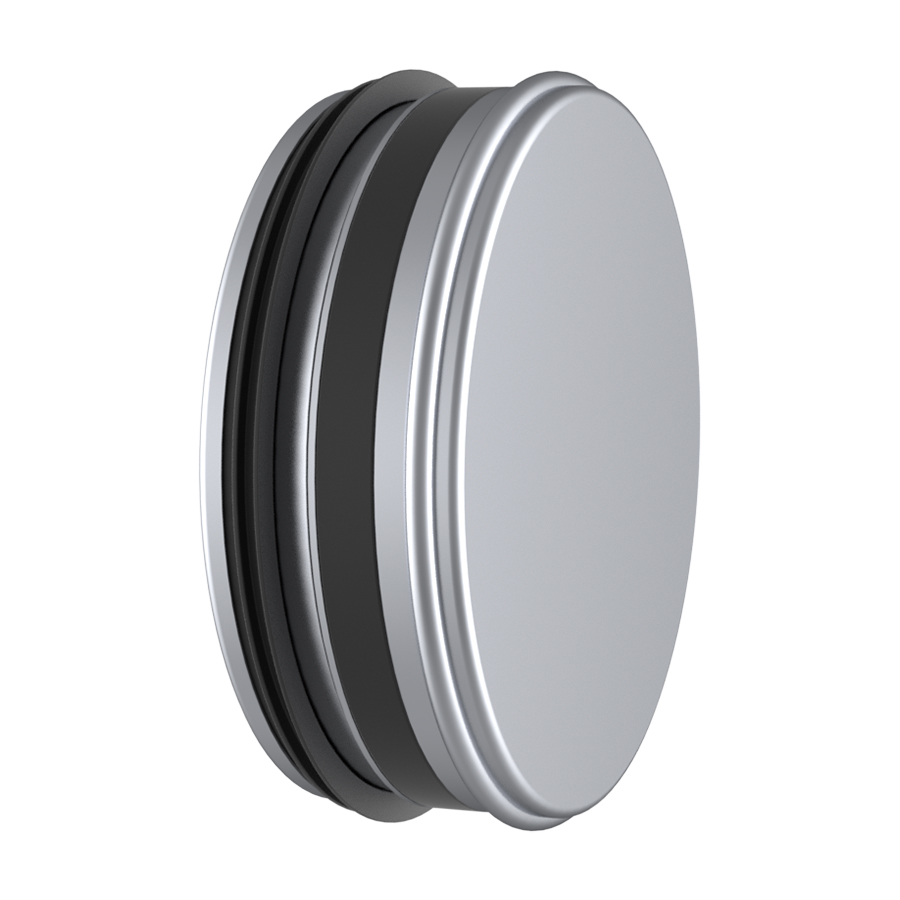

NAL-T End cap

NALM-T End cap

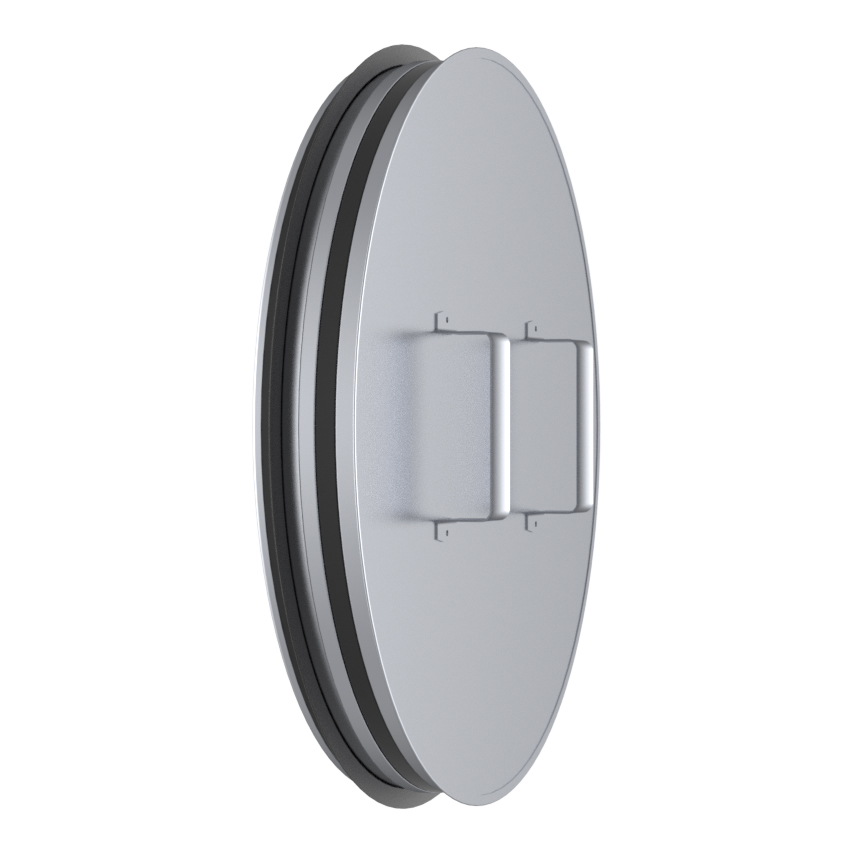

NALH-T Cleaning cover

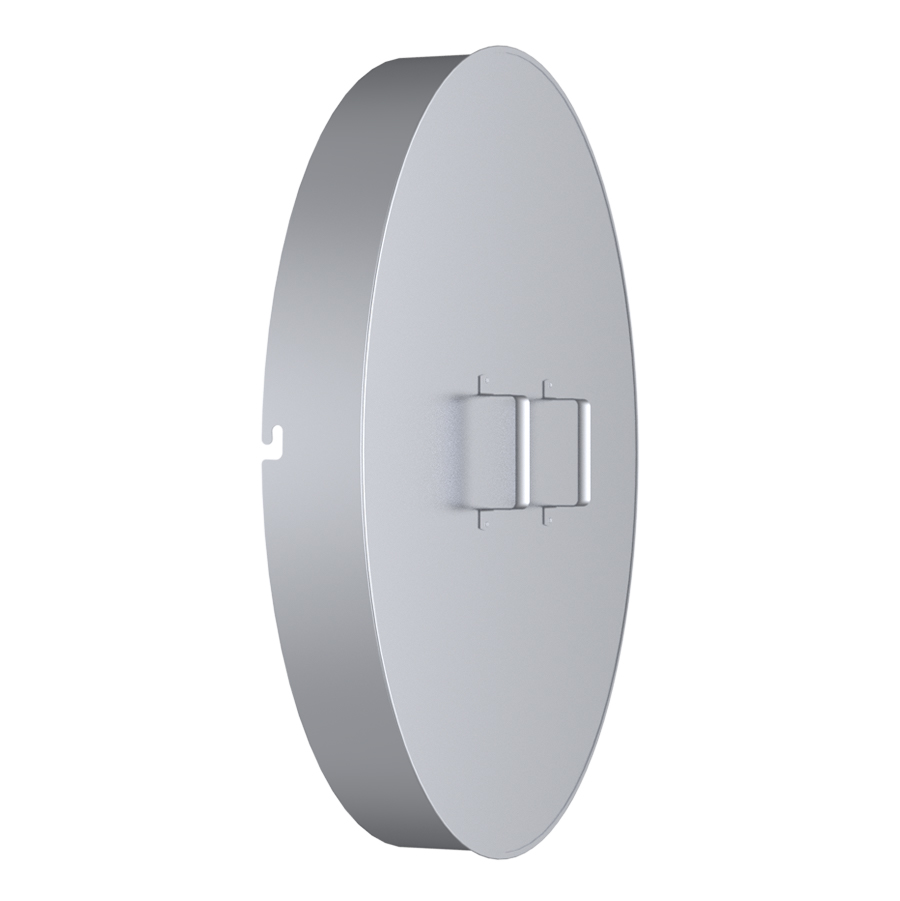

NALMH-T Cleaning cover

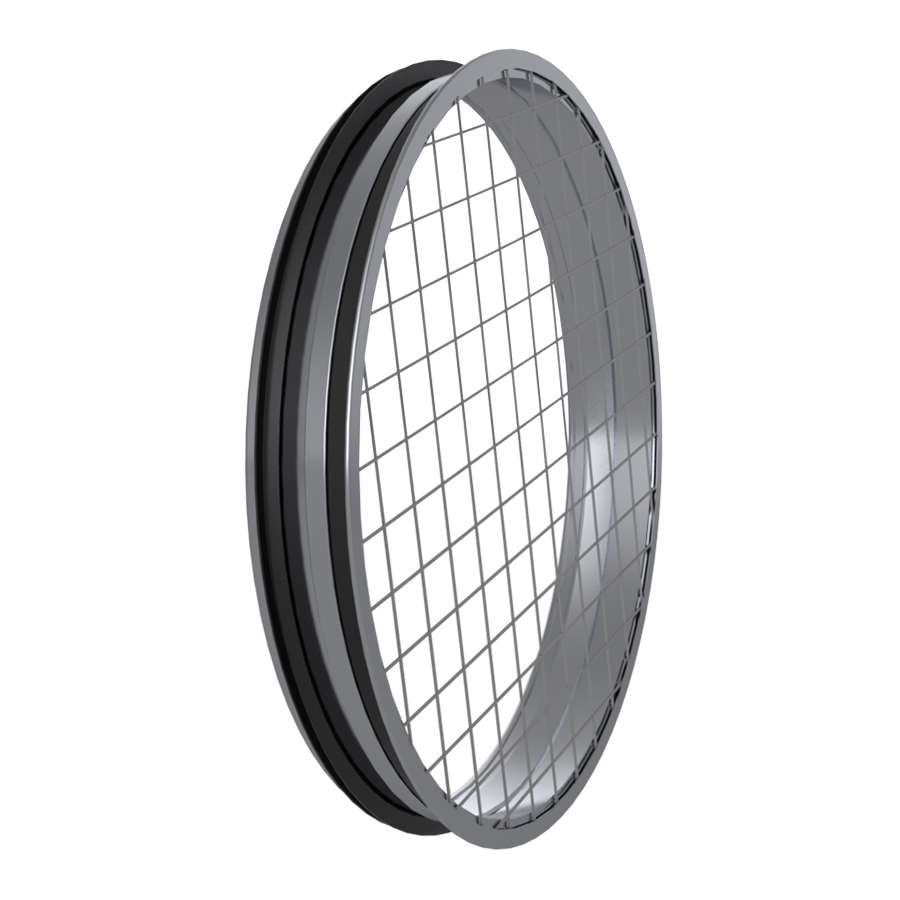

NG-T Air intake with mesh

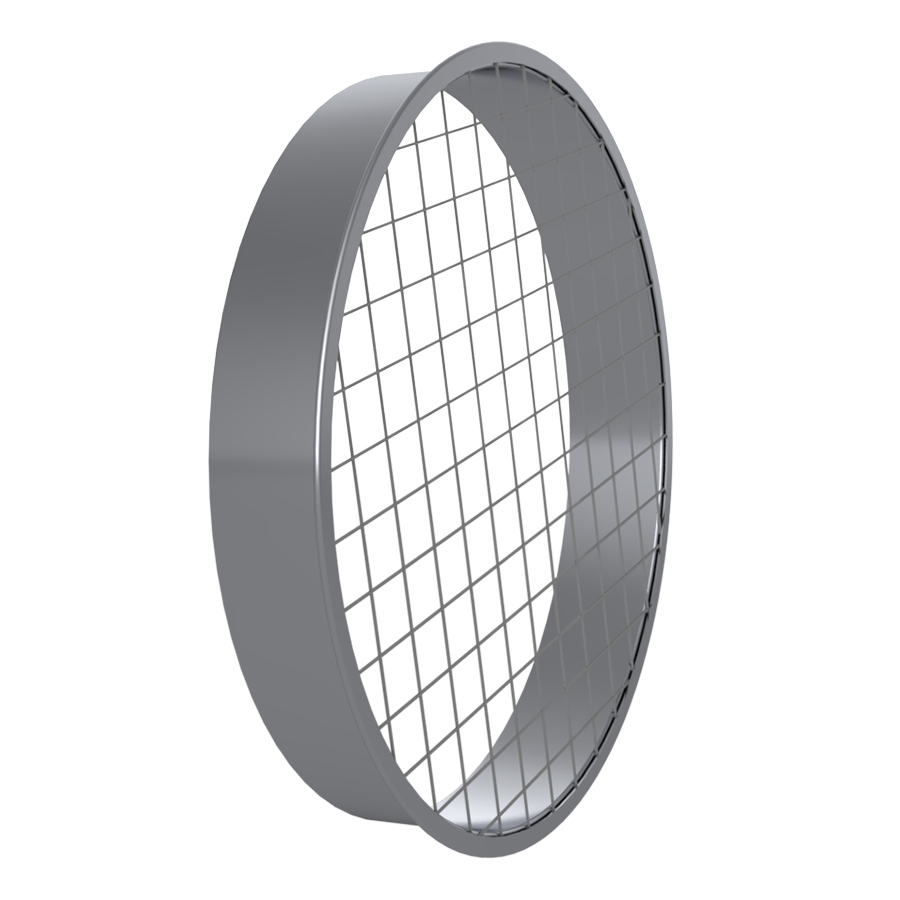

NGM-T Air intake with mesh

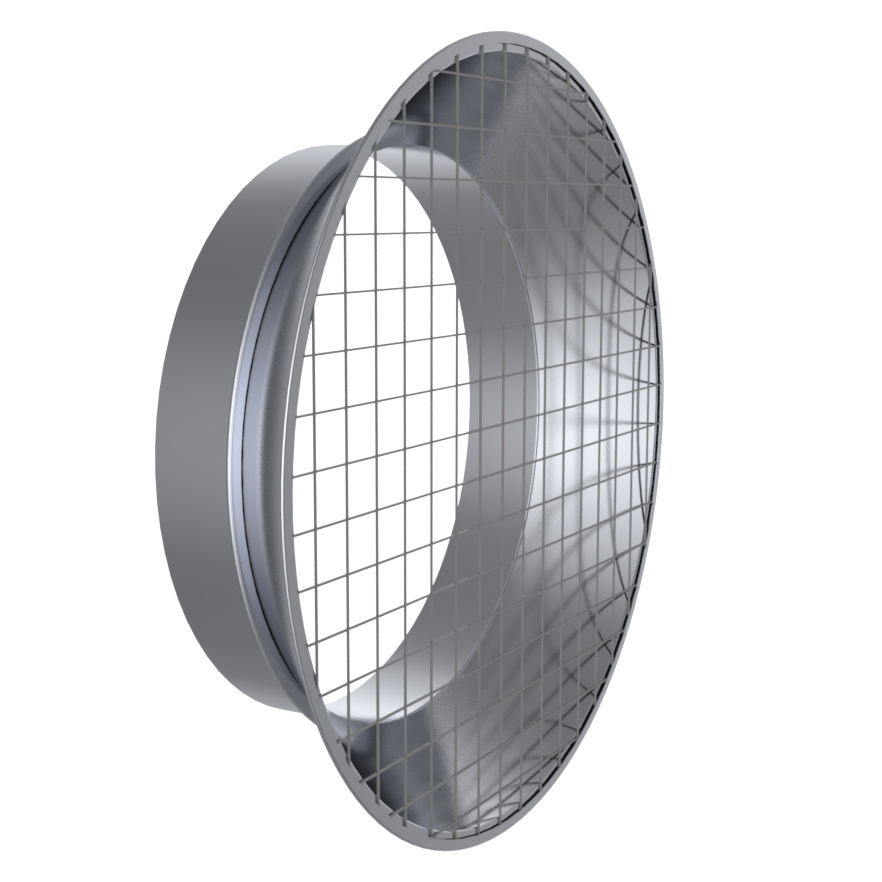

NKM-T Air intake with mesh

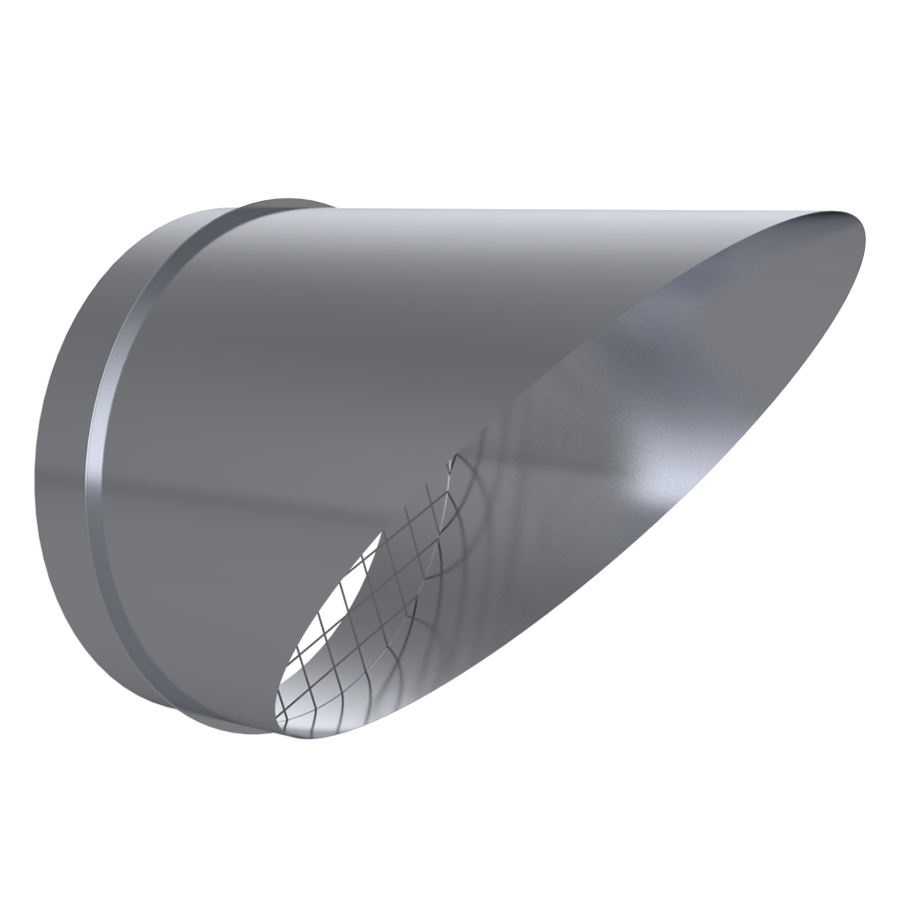

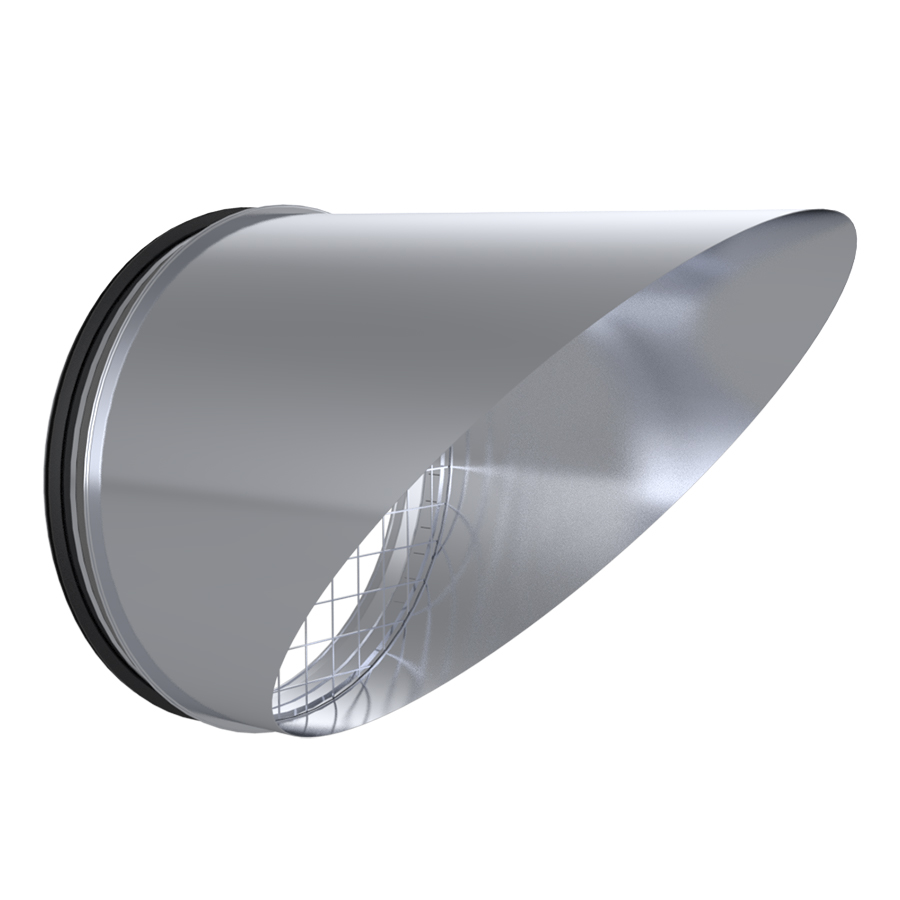

NP-T Exhaust end piece
